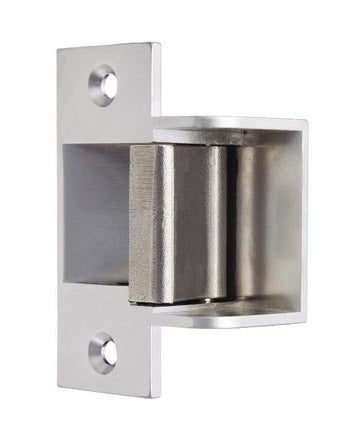

FSH FES7 Compact Strike, Non-Monitored, up to 500kg, 12V DC
The FSH FES7 Compact Electric Strike is a compact, high-strength locking solution designed for access control applications where space within the door frame is limited. Its small footprint allows it to replace many standard entrance-set strike plates while helping maintain the strength and integrity of the door frame.
Suitable for timber, steel and aluminium door frames, the FES7 can be mounted on either side of the door and is field configurable for Power to Open (PTO) or Power to Lock (PTL) operation, providing flexibility across a wide range of installations.
With a 500kg static holding force and a continuously rated 12V DC solenoid drawing approximately 90mA, the FES7 provides reliable locking performance while maintaining low power consumption.
Key Features:
- Compact electric strike design
- Up to 500kg static holding force
- 60J dynamic strength
- 12V DC operation – approximately 90mA
- Non-monitored configuration
- Field changeable between Power to Open (PTO) and Power to Lock (PTL)
- Suitable for timber, steel and aluminium door frames
- Designed to suit standard entrance-set strike plate dimensions
- Can be installed on either side of the door
- Continuously rated solenoid
- Low current consumption
- Easy installation
- Ideal for access control and electronic door locking applications
The FSH FES7 is an excellent choice for commercial and residential access control installations requiring a strong, reliable and discreet electric locking solution.
