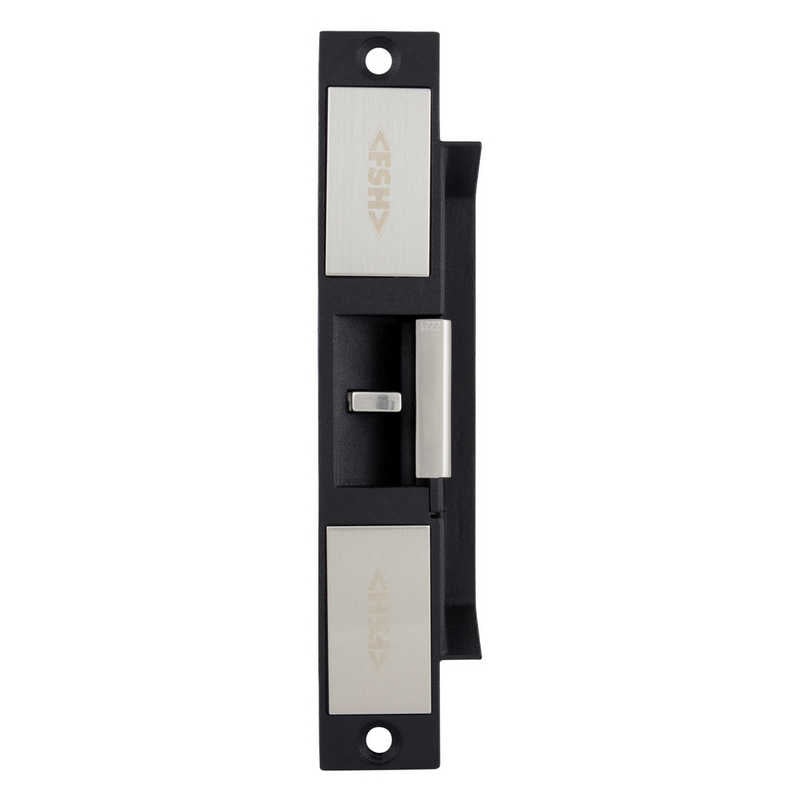

FSH FES90M High Security Electric Strike, 1300kg Hold Force, 35kg Pre-Load 12-30V DC
The FSH FES90M-P is a high-security motorised electric strike designed for demanding commercial, government and access-control applications where exceptional holding strength, monitoring and reliable operation under door pressure are required.
Unlike conventional electric strikes, the FES90M-P features up to 35kg of pre-load and side-load capability, allowing the strike to release even when significant pressure is being applied to the door. This makes it particularly suitable for doors affected by seals, air pressure, warped frames or other conditions that can place constant pressure on the locking mechanism.
The strike provides an impressive holding strength of up to 1300kg and has been durability tested to 1.5 million operating cycles at the full 35kg pre-load. Its motorised locking mechanism can be field configured for either Fail Secure – Power to Open or Fail Safe – Power to Lock operation, providing excellent flexibility across different access-control applications.
The FES90M-P also incorporates comprehensive lock monitoring, including a Lock Status Sensor (LSS) to monitor the internal locking mechanism and a Door Latch Sensor (DSS) to confirm that the door latch is correctly engaged within the strike keeper.
Key Features:
- High-security motorised electric strike
- Up to 1300kg holding strength
- Releases under up to 35kg pre-load / side-load
- Durability tested to 1.5 million full pre-load cycles
- Field selectable Fail Secure / Power to Open
- Field selectable Fail Safe / Power to Lock
- Multi-voltage 10–30VDC operation
- Approximately 300mA @ 12VDC during locking/unlocking at maximum pre-load
- Low-power Sleep Mode – approximately 15mA @ 12VDC
- LSS – Lock Status Sensor
- DSS – Door Latch Status Sensor
- Monitored locking operation
- Standard 10mm strike lip
- Pre-drilled for optional extension lips
- Shock and hammer resistant construction
- Operating temperature: -20°C to +60°C
- Up to 4-hour fire rated in accordance with AS1905.1:2015 subject to the applicable installation
- CE and RCM approved
- SCEC-approved versions available
- 5-year manufacturer's warranty
- Ideal for high-security commercial and access-control applications
