Hanwha PNM-A13022RV 13MP 194 degree AI IR Panoramic Camera

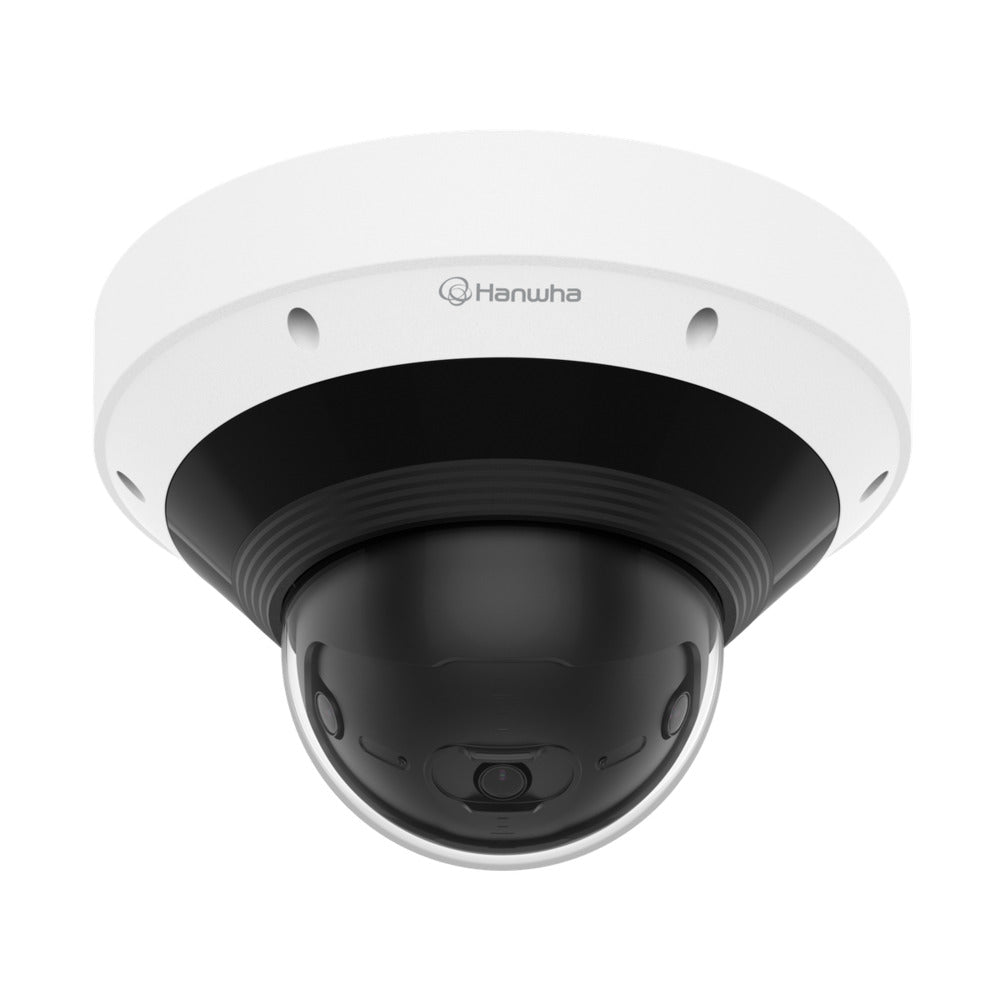

The Hanwha Vision PNM-A13022RV is a high-resolution 13MP AI panoramic network camera designed to provide an ultra-wide 194° horizontal field of view from a single camera position. It delivers a single panoramic image, making it ideal for monitoring building frontages, entrances, open public areas and other locations requiring approximately 180° coverage.
With a maximum resolution of 5120 × 2592 and frame rates up to 30fps, the PNM-A13022RV provides excellent image detail across a very wide scene. Integrated IR illumination up to 20 metres provides reliable surveillance in low-light and night-time conditions.
Key Features
- 13MP panoramic image resolution
- Maximum resolution 5120 × 2592
- 194° horizontal field of view
- 93° vertical field of view
- 3.06mm fixed lens
- Up to 30fps
- Integrated IR illumination up to 20m
- Four individually adjustable IR zones
- 120dB Wide Dynamic Range
- AI-based object detection and intelligent video analytics
- People and vehicle detection
- BestShot and object attribute metadata
- People, vehicle and crowd counting
- Queue management and heatmap analytics
- Slip & fall detection
- H.265, H.264 and MJPEG compression
- WiseNR II AI-based noise reduction
- Suitable for wide-area indoor and outdoor surveillance
- IP66 weather resistant
- IK10 vandal resistant
- NEMA 4X rated
The PNM-A13022RV is particularly suited to applications requiring 180° panoramic coverage from a single camera, with its 194° field of view providing additional coverage at either side of the monitored area. Its combination of 13MP resolution, integrated IR and AI analytics makes it well suited to commercial, council, sporting and public-area CCTV installations.
