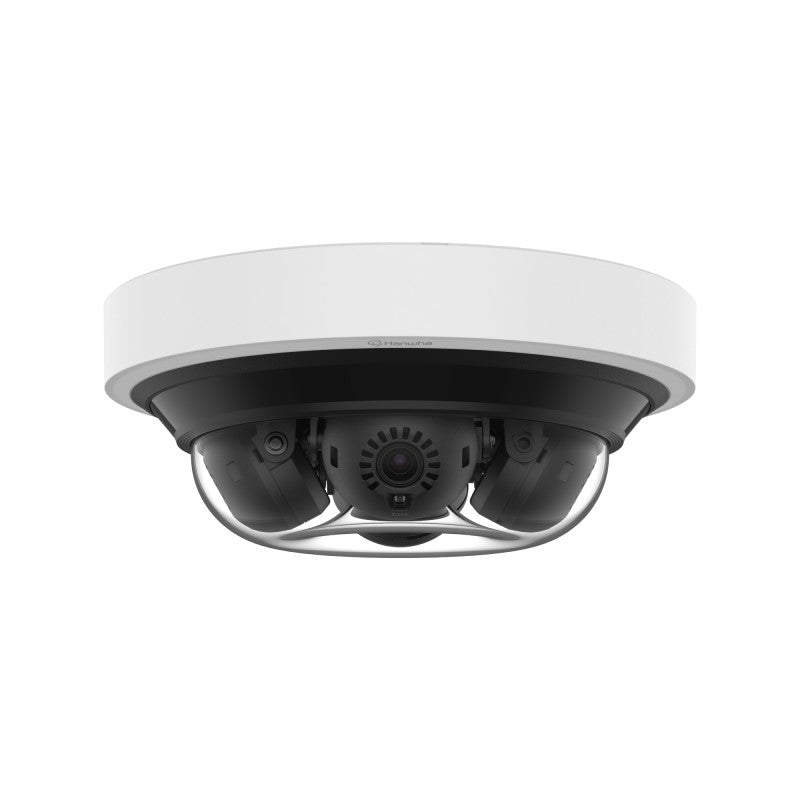

Hanwha PNM-C16013RVQ 4MP x 4CH Outdoor Mini Multi Directional Dome Camera
The Hanwha Vision PNM-C16013RVQ is a compact 4-channel multi-directional network camera designed to provide wide-area surveillance from a single camera housing. Featuring four independently adjustable 4MP sensors, it is ideal for monitoring multiple directions, entrances, corridors and surrounding areas while reducing the number of individual cameras required.
Each channel uses a 3.19mm fixed lens providing approximately 97° horizontal field of view, with flexible positioning of each sensor to suit the surveillance area. Each channel can deliver up to 4MP resolution at 15fps.
Integrated IR illumination provides visibility up to 20 metres, allowing the camera to continue monitoring in low-light and night-time conditions. The camera also incorporates Hanwha's AI analytics for classification and detection of people, faces, vehicles and licence plates.
Key Features
- 4 x independent 4MP camera channels
- Up to 2592 × 1520 resolution per channel
- Up to 15fps at 4MP
- 4 x 3.19mm fixed lenses
- Approximately 97° horizontal viewing angle per channel
- Independently adjustable sensor positioning
- Integrated IR illumination up to 20m
- AI object classification for people, faces, vehicles and licence plates
- AI-based intrusion, loitering, line crossing, enter and exit detection
- 120dB Wide Dynamic Range
- Hanwha WiseNR II AI noise reduction
- WiseStream III intelligent bandwidth optimisation
- H.265, H.264 and MJPEG compression
- Supports Hallway View
- IP66 weather resistant
- IK09 impact resistant
- NEMA 4X rated
- Advanced cybersecurity including TPM 2.0
- Suitable for indoor and outdoor commercial surveillance applications
The PNM-C16013RVQ is particularly suited to areas where several different viewing directions need to be monitored from a single mounting location, providing up to four separately configurable video views from one compact camera housing.
