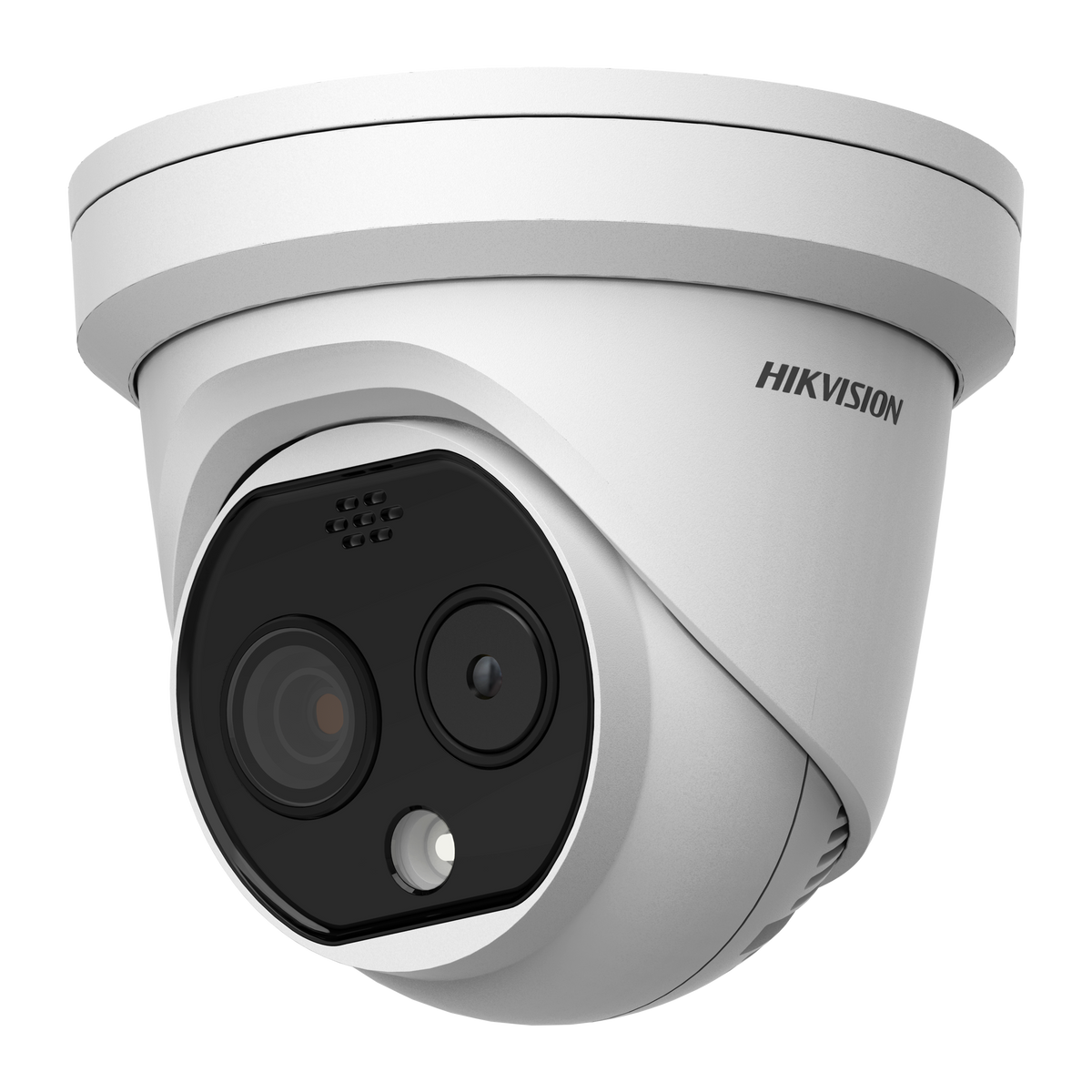

Hikvision DS-2TD1228-3/QA Bi-spectrum Thermography Thermal & Optical Network Turret Camera 4MP Optical 3.6mm Lens
The Hikvision DS-2TD1228-3/QA combines a 256 × 192 thermal sensor with a 4MP optical camera, providing thermal detection and detailed conventional video from a single device. It is suited to perimeter security, fire prevention and temperature monitoring applications across warehouses, workshops, construction sites, car parks, waste facilities and other commercial or industrial environments.
The camera supports human and vehicle classification with intelligent line-crossing, intrusion, region-entry and region-exit rules. Temperature exception alarms, fire detection, smoking detection and a sun-reflection filter provide early warning of abnormal heat or potential fire risks.
Its 2688 × 1520 optical camera delivers approximately 4MP resolution, supported by 120 dB WDR and infrared illumination up to 15 metres. Integrated white-light and audible alarms can provide active on-site warnings when a security or temperature event is detected.
Key features:
- 256 × 192 VOx thermal sensor with high thermal sensitivity
- 4MP optical camera with 2688 × 1520 resolution
- 3.6mm thermal lens and 4.3mm optical lens
- Human and vehicle classification
- Line-crossing, intrusion, region-entry and region-exit detection
- Temperature monitoring from -20°C to 150°C
- Temperature exception alarms for fire prevention
- Fire and smoking detection algorithms
- Thermal and optical image viewing
- 120 dB Wide Dynamic Range
- Infrared illumination up to 15 metres
- White-light warning range up to 30 metres
- Built-in audible and flashing-light alarm functions
- MicroSD card support up to 256GB
- Alarm input and output, audio connections and RS-485 interface
- 12V DC or PoE power
- IP67-rated weather-resistant housing
- Suitable for operating temperatures from -40°C to 65°C
