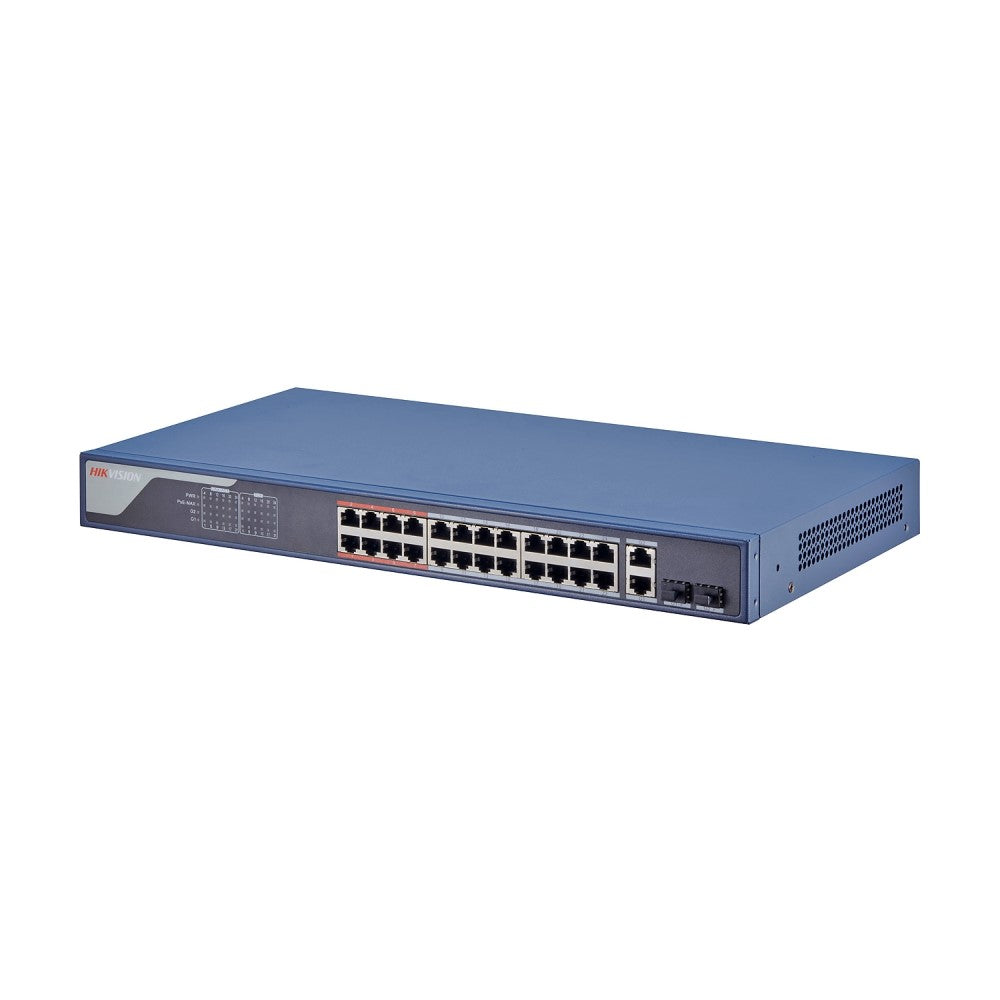

Hikvision DS-3E1326P-EI 24 Port Smart Managed 100 Mbps PoE Switch with 1GB Uplinks
The Hikvision DS-3E1326P-EI is a powerful 24-port smart managed PoE switch designed specifically for professional CCTV and IP surveillance systems. With a generous 370 W PoE power budget, it can provide network connectivity and power to multiple compatible IP cameras through a single Ethernet cable, helping simplify installation and reduce cabling requirements.
The switch features 24 × 10/100 Mbps PoE ports along with two Gigabit combo uplink ports, providing reliable connectivity between your cameras, network video recorder and wider network.
Hikvision’s intelligent PoE management features make the DS-3E1326P-EI particularly well suited to security installations. PoE watchdog technology can automatically detect and restart an unresponsive camera, reducing the need for manual service calls and helping keep your surveillance system operating reliably.
For larger installations, Extend Mode supports PoE transmission distances of up to 300 metres using compatible network cabling. The switch also includes VLAN support, network loop prevention, cable fault detection and 6 kV surge protection for improved network reliability and equipment protection.
Key Features
- 24 × 10/100 Mbps PoE network ports
- Two Gigabit RJ45/SFP combo uplink ports
- Generous 370 W total PoE power budget
- Supports IEEE 802.3af and IEEE 802.3at PoE devices
- Maximum power output of up to 30 W per PoE port
- PoE watchdog automatically detects and restarts unresponsive cameras
- Up to 300 metre PoE transmission in Extend Mode
- 802.1Q VLAN support for network separation and management
- STP and RSTP network loop prevention
- Cable detection for identifying network cable faults
- 6 kV surge protection for PoE ports
- Durable metal housing
- Designed for professional IP camera and CCTV installations
The DS-3E1326P-EI is an excellent choice for commercial properties, warehouses, offices, retail stores and larger residential security systems requiring reliable power and network distribution for multiple IP cameras.
Please note: The 24 PoE camera ports operate at 10/100 Mbps. The switch includes Gigabit combo ports for connection to an NVR, router or network backbone.
