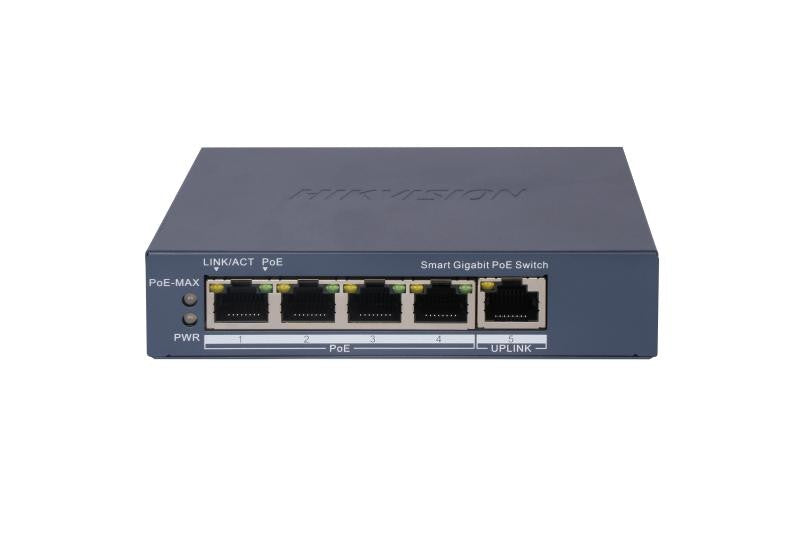

Hikvision DS-3E1505P-EI 4 Port Gigabit PoE Switch
The Hikvision DS-3E1505P-EI is a compact smart-managed PoE switch designed for CCTV systems, IP cameras, video intercoms and other network devices. It features four Gigabit PoE ports and one dedicated Gigabit RJ45 uplink port, providing high-speed network connectivity and power through a single Ethernet cable.
With a total 60W PoE power budget, the switch supports IEEE 802.3af and IEEE 802.3at devices, with up to 30W available per PoE port. This makes it suitable for powering compatible Hikvision cameras, intercom stations and other PoE devices without requiring separate local power supplies.
The DS-3E1505P-EI supports PoE transmission distances of up to 300 metres, providing additional flexibility for cameras installed further away from the network equipment. Actual long-range performance may vary depending on the connected device and cabling conditions.
An intelligent PoE watchdog monitors connected devices and can automatically restart a camera that stops responding, helping reduce system downtime and unnecessary service visits. Cable detection tools can also identify open circuits, short circuits and approximate cable lengths, making network faults easier to locate.
Smart-management features include 802.1Q VLAN support, port isolation, STP/RSTP loop prevention, port mirroring and remote network monitoring. The switch can be managed through its web interface and supported Hikvision platforms, allowing installers to check port status, bandwidth usage, PoE power consumption, network topology and device alarms.
Key Features
- Four 10/100/1000 Mbps Gigabit PoE ports
- One 10/100/1000 Mbps Gigabit RJ45 uplink port
- 60W total PoE power budget
- Up to 30W output per PoE port
- Supports IEEE 802.3af and IEEE 802.3at PoE
- 10 Gbps switching capacity
- 7.44 Mpps packet-forwarding rate
- Long-range PoE transmission up to 300 metres
- Automatic PoE watchdog and device restart
- Cable fault and cable-length detection
- Port-isolation mode
- 802.1Q VLAN support
- Supports STP and RSTP loop prevention
- Port mirroring and network-management functions
- Remote management through Hik-Partner Pro
- Compatible with HikCentral Professional management
- 6kV surge protection
- Durable metal housing
- Suitable for desktop or wall-mounted installation
The Hikvision DS-3E1505P-EI provides a reliable and easily managed networking solution for smaller surveillance and intercom systems. Its Gigabit performance, intelligent PoE monitoring and long-range transmission capability make it an excellent choice for professional residential and commercial security installations.
