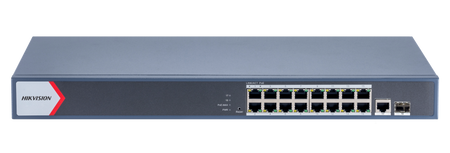

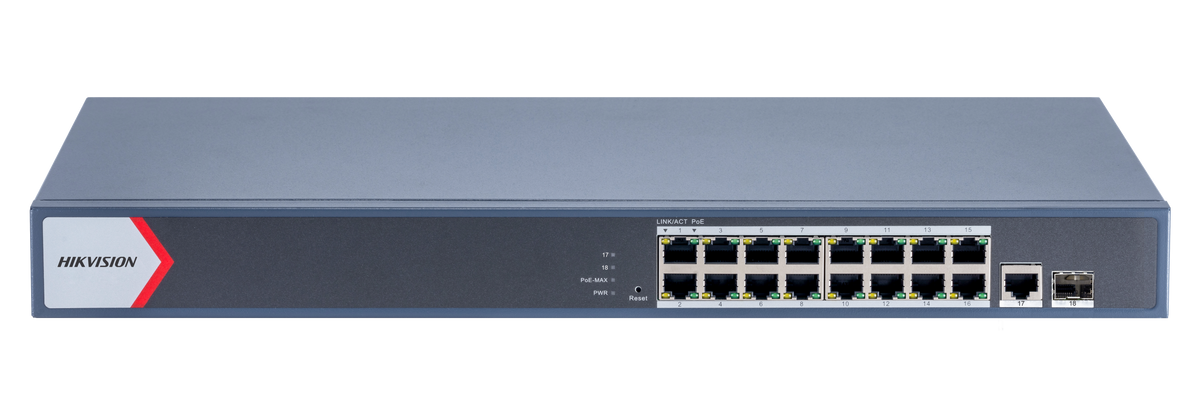

Hikvision DS-3E1518P-EI 16 Port Gigabit PoE Switch 230W
The Hikvision DS-3E1518P-EI is a professional 16-port Gigabit smart managed PoE switch designed for reliable, high-performance IP CCTV and network installations.
Featuring 16 Gigabit PoE ports, a dedicated Gigabit RJ45 uplink and a Gigabit SFP fibre uplink, the DS-3E1518P-EI provides fast and dependable connectivity between your IP cameras, network video recorder and wider network. Its generous 230 W PoE power budget allows compatible cameras to receive both power and data through a single network cable, helping reduce installation time and cabling requirements.
Designed specifically for video security applications, the switch includes PoE watchdog technology that automatically detects and restarts unresponsive cameras. This can help restore camera connectivity without requiring the switch or camera to be manually rebooted.
Long-range transmission supports PoE and network connections of up to 300 metres on ports 1–16, depending on the connected camera and cable conditions. This makes the DS-3E1518P-EI well suited to warehouses, commercial properties and larger sites where cameras may be located further away from the main communications equipment.
Smart management features allow installers to monitor network health, view connected devices, troubleshoot faults and remotely manage the switch through its web interface or Hik-Partner Pro.
Key Features
- 16 × Gigabit PoE RJ45 ports
- 1 × Gigabit RJ45 uplink port
- 1 × Gigabit SFP fibre uplink port
- 230 W total PoE power budget
- Up to 30 W available per PoE port
- Supports IEEE 802.3af and IEEE 802.3at PoE devices
- PoE watchdog automatically detects and restarts unresponsive cameras
- Up to 300-metre long-range transmission on PoE ports
- Remote monitoring and management through Hik-Partner Pro
- Web-based switch management
- Network topology and device status monitoring
- IEEE 802.1Q VLAN support
- STP and RSTP network loop prevention
- Static link aggregation
- Port isolation and port mirroring
- Quality of Service traffic management
- DHCP snooping for improved network security
- Network cable fault and cable-length detection
- Energy-saving PoE scheduling
- 6 kV surge protection
- Durable metal, rack-mountable housing
- 56 Gbps switching capacity
The Hikvision DS-3E1518P-EI is an excellent choice for commercial CCTV systems, offices, warehouses, retail stores, apartment buildings and larger residential security installations requiring reliable Gigabit performance and centralised PoE power distribution.
Please note: Long-range performance may vary depending on the connected camera model and network cable quality.
