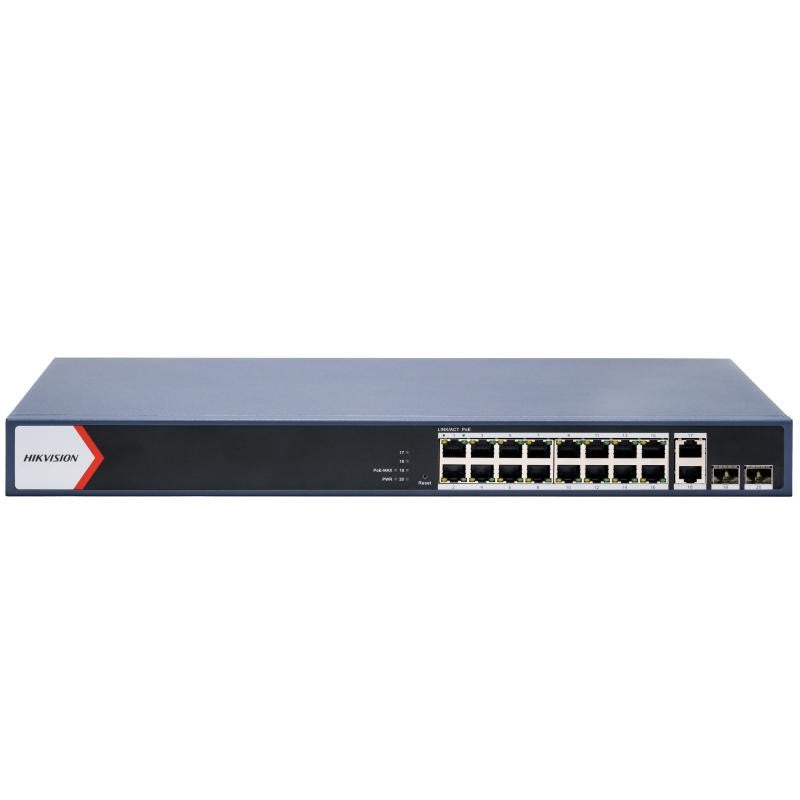

Hikvision DS-3E1520P-EI 16 Port Managed Switch 10/100 with 2 x 1GB Uplinks & 2 x SFP
The Hikvision DS-3E1520P-EI is a 16-port Gigabit Smart Managed PoE switch designed for CCTV and IP networking applications. It provides 16 Gigabit PoE ports, plus 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP fibre ports, making it well suited to medium-to-large IP camera installations requiring flexible uplink and fibre connectivity.
With a generous 230W total PoE budget, the switch supports IEEE 802.3af/at PoE, delivering up to 30W per PoE port. Hikvision’s extended-range mode supports PoE transmission distances of up to 300 metres on ports 1–16, subject to cable and device conditions.
Key Features:
- 16 × Gigabit PoE RJ45 ports
- 2 × Gigabit RJ45 uplink ports
- 2 × Gigabit SFP fibre ports
- 230W total PoE power budget
- Up to 30W PoE output per port
- IEEE 802.3af / 802.3at compliant
- Up to 300m long-range PoE transmission
- 68Gbps switching capacity
- 50.59Mpps forwarding rate
- PoE Watchdog automatically detects and restarts unresponsive cameras
- Supports 802.1Q VLAN
- Supports STP/RSTP loop prevention
- Static link aggregation
- QoS support
- Port isolation
- Cable fault detection
- 6kV surge protection
- Web-based management
- Remote management and network topology monitoring through Hik-Partner Pro
- HikCentral Professional management support
- Rack-mountable metal chassis.
The DS-3E1520P-EI is an excellent choice for commercial CCTV systems, warehouses, offices, schools and larger residential installations, providing reliable Gigabit PoE connectivity together with useful smart-management and remote troubleshooting features.
