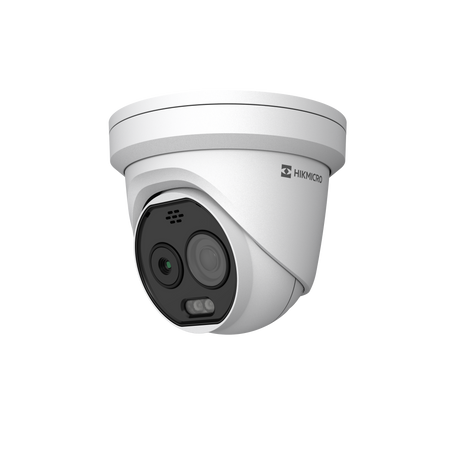

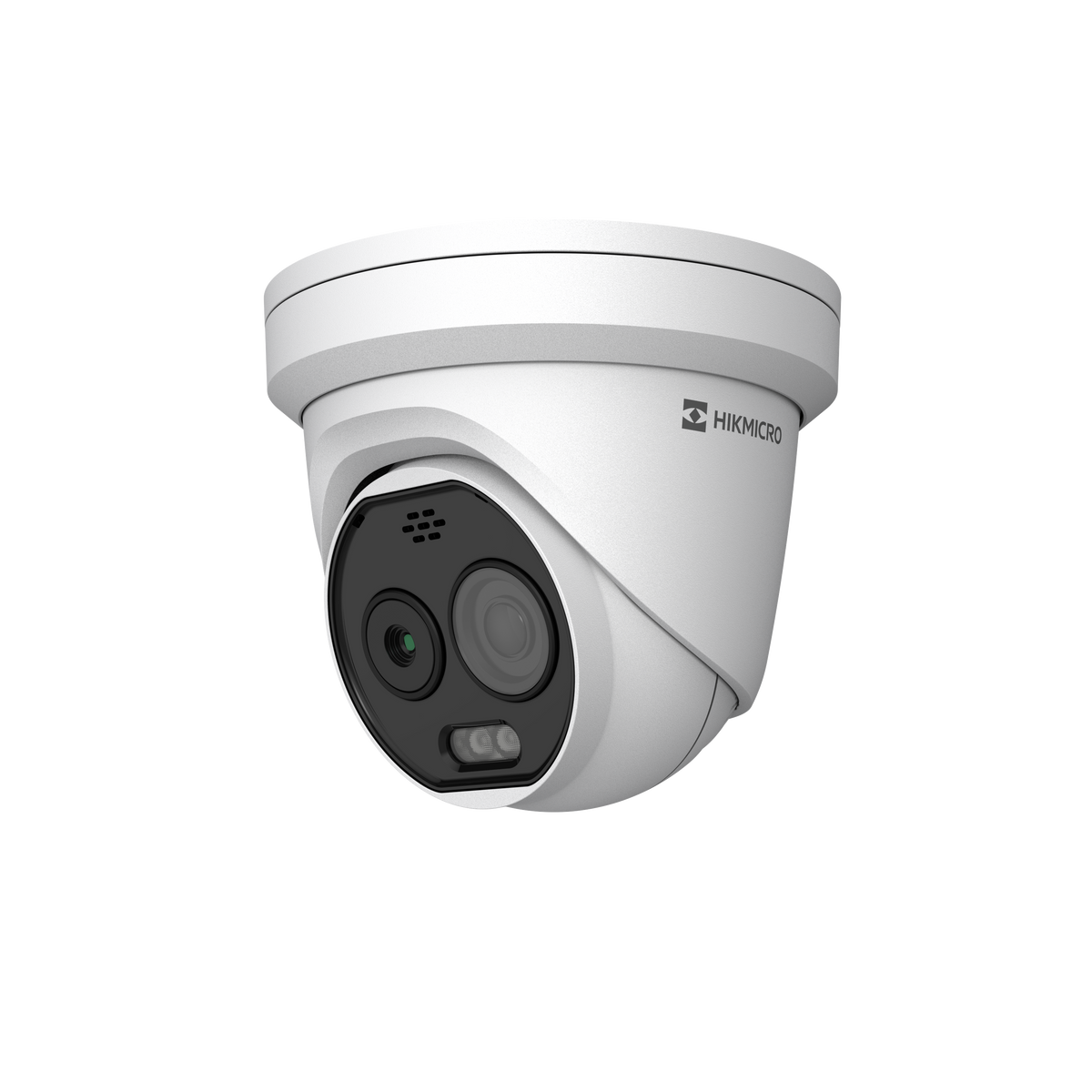

Hikvision HM-TD1228T-2/G1/T3A Bi-spectrum Thermography Thermal & Optical Network Turret Camera 5MP Optical 2mm Lens
The HIKMICRO HM-TD1228T-2/G1/T3A is an advanced thermal and optical network turret camera designed for temperature monitoring, early fire detection and intelligent perimeter protection. Combining a highly sensitive 256 × 192 thermal sensor with a 5MP visible-light camera, it delivers detailed thermal information alongside clear conventional video for reliable verification of alarms and abnormal conditions.
Accurate thermography supports temperature measurement from -20°C to 650°C, with configurable point, line and area monitoring rules. Dynamic fire, smoke and smoking detection algorithms provide early warning in substations, manufacturing facilities, waste processing plants, workshops and other high-risk environments.
The integrated GUANLAN AI model provides accurate human and vehicle classification while helping reduce false alarms. Smart Hybrid Light technology combines infrared and white-light illumination up to 30 metres, while built-in audible and flashing-light warnings can provide immediate on-site deterrence or notification.
Key features:
- 256 × 192 VOx thermal detector with ≤25 mK thermal sensitivity
- 5MP optical camera with 120 dB WDR
- Wide-angle 2.1 mm thermal and 2.2 mm optical lenses
- Temperature measurement range from -20°C to 650°C
- Maximum temperature accuracy of ±2°C or ±2%
- Dynamic fire, smoke and smoking detection
- AI human and vehicle classification
- Thermal and optical image fusion and picture-in-picture viewing
- Smart Hybrid Light with IR and white light up to 30 metres
- Configurable audible and flashing-light alarms
- MicroSD card support up to 512GB
- Alarm inputs and outputs plus RS-485 connectivity
- 12V DC, 24V DC or PoE+ power options
- IP67 weather-resistant construction
- Suitable for operating temperatures from -40°C to 65°C
