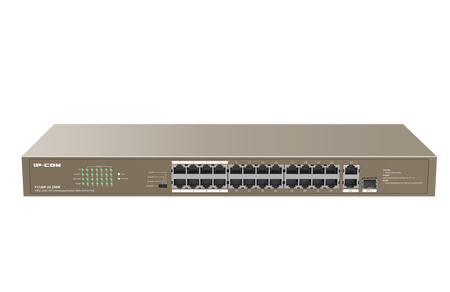

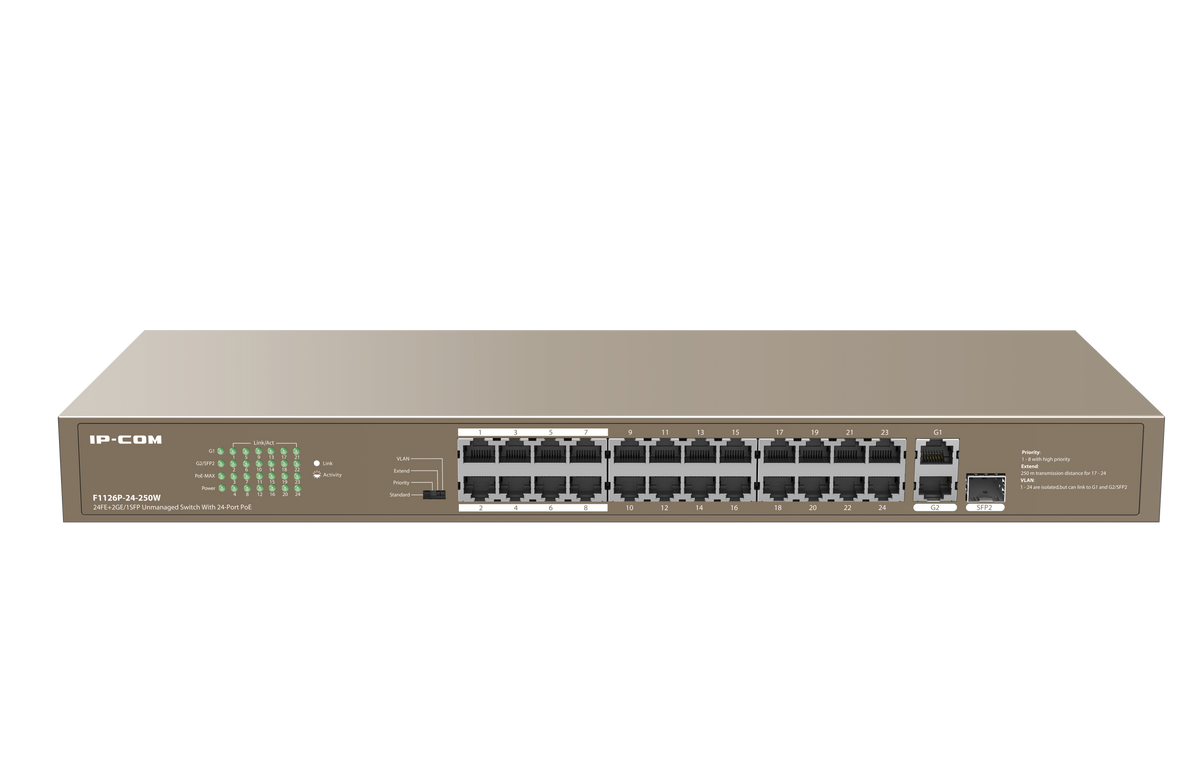

IP-COM F1126P-24-250W 24FE+2GE/1SFP Unmanaged Switch With 24-Port PoE

The IP-COM F1126P-24-250W 24-Port PoE Unmanaged Network Switch is a reliable and cost-effective networking solution designed for CCTV surveillance systems, commercial networks and IP-based security installations.

Featuring 24 Fast Ethernet PoE ports, two Gigabit uplink connections (including a shared SFP combo port) and a total 230W PoE power budget, this switch provides efficient data transmission and power distribution for IP cameras, wireless access points, IP phones and other compatible PoE devices.

With intelligent PoE power management, multiple operating modes and built-in surge protection, the F1126P-24-250W is ideal for residential and commercial security installations requiring dependable network connectivity.

Key Features

• 24 PoE Ethernet Ports – 24 × 10/100Mbps RJ45 ports provide network connectivity and power to compatible devices.

• 230W Total PoE Power Budget – Supports multiple connected PoE devices with up to 30W available per port, subject to the total power budget.

• Gigabit Uplink Connectivity – Two 10/100/1000Mbps RJ45 uplink ports, with one sharing connectivity with the Gigabit SFP combo slot.

• IEEE 802.3af/at PoE Support – Compatible with standard PoE and PoE+ devices, including IP cameras, wireless access points and IP phones.

• Extended PoE Transmission – Extend mode supports transmission distances up to 250 metres on ports 17–24 at reduced 10Mbps speeds.

• Four Operating Modes – Standard, Priority, Extend and VLAN modes provide flexible network configuration without complex software management.

• 6kV Lightning Protection – Built-in protection helps safeguard connected equipment against electrical surges.

• 8.8Gbps Switching Capacity – Supports efficient data forwarding across connected devices.

• Plug-and-Play Operation – Unmanaged design allows straightforward installation without software configuration.

• Rack-Mountable Design – Suitable for professional network cabinets and security equipment racks.

Four Operating Modes

Standard Mode

Normal network operation, allowing connected devices to communicate across the switch.

Priority Mode

Prioritises traffic from ports 1–8, making it suitable for important CCTV and networking devices.

Extend Mode

Extends supported PoE connections up to 250 metres on ports 17–24, with transmission speeds reduced to 10Mbps.

VLAN Mode

Provides port isolation between the 24 PoE ports while maintaining communication with the uplink ports, helping improve network separation and reduce unnecessary broadcast traffic.

Technical Specifications

Ideal Applications

The IP-COM F1126P-24-250W is suitable for:

• Commercial and residential CCTV surveillance systems

• Multi-camera IP security installations

• Offices, warehouses and retail premises

• Schools, hotels and commercial facilities

• Wireless access point networks

• IP telephony systems

• Security and communications equipment cabinets

Reliable PoE Networking for CCTV Systems

The F1126P-24-250W simplifies CCTV and network installations by delivering both data and electrical power over a single Ethernet cable to compatible devices.

Its 230W total PoE budget and 24 powered ports make it an excellent choice for installations requiring multiple IP cameras, while the Gigabit uplink connections provide connectivity to network video recorders (NVRs), routers and other network infrastructure.

With an easy-to-install unmanaged design and dedicated CCTV-friendly operating modes, this switch offers practical networking performance without the complexity of a fully managed network switch.

Professional CCTV & Networking Solutions

DigitalSi – Security Systems Integrator

DigitalSi specialises in professional CCTV, security systems, access control and networking solutions throughout Brisbane, Ipswich, Logan, the Sunshine Coast, Gold Coast and surrounding South East Queensland.

Contact DigitalSi for assistance selecting the right PoE network switch for your CCTV or networking installation.
