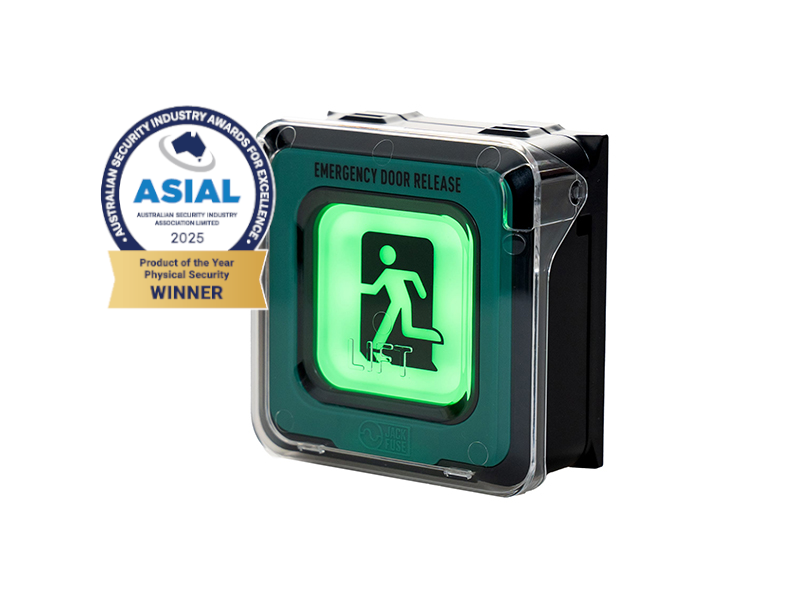

Jack Fuse EBG-C Resettable Emergency Door Release Break Glass Green LED
The Jack Fuse EBG-C Electronic Break Glass is a resettable emergency door release unit designed for use with electric locking, access control, automatic doors and gates. Unlike traditional break-glass units, it supports automatic, remote and local reset, reducing the need for technicians to attend site simply to reset an activated emergency door release.
During normal operation, the EBG-C displays a green backlit LED indication. When the large actuator is pressed, the indication changes to red, the built-in warning sounder activates and power to the associated electric lock is interrupted to release the door.
Key features include:
- Automatic, remote and local reset
- Green normal-status LED changing to red on activation
- Integrated activation sounder
- Lift-up protective activation guard
- Adjustable LED brightness and sounder volume
- Case and wall tamper monitoring
- Local override facility
- 2 × 3A SPDT relay contacts
- Suitable for 12V and 24V access control systems
- Standard break-glass footprint for straightforward retrofit installations
- Suitable for emergency door release, electric locks, automatic doors and gates
Operating Voltage: 12–28V DC
Relay Contacts: 2 × SPDT, 3A maximum
Dimensions: 86 × 86 × 40 mm
Finish: Charcoal with green fascia/status indication
Model: EBG-C
