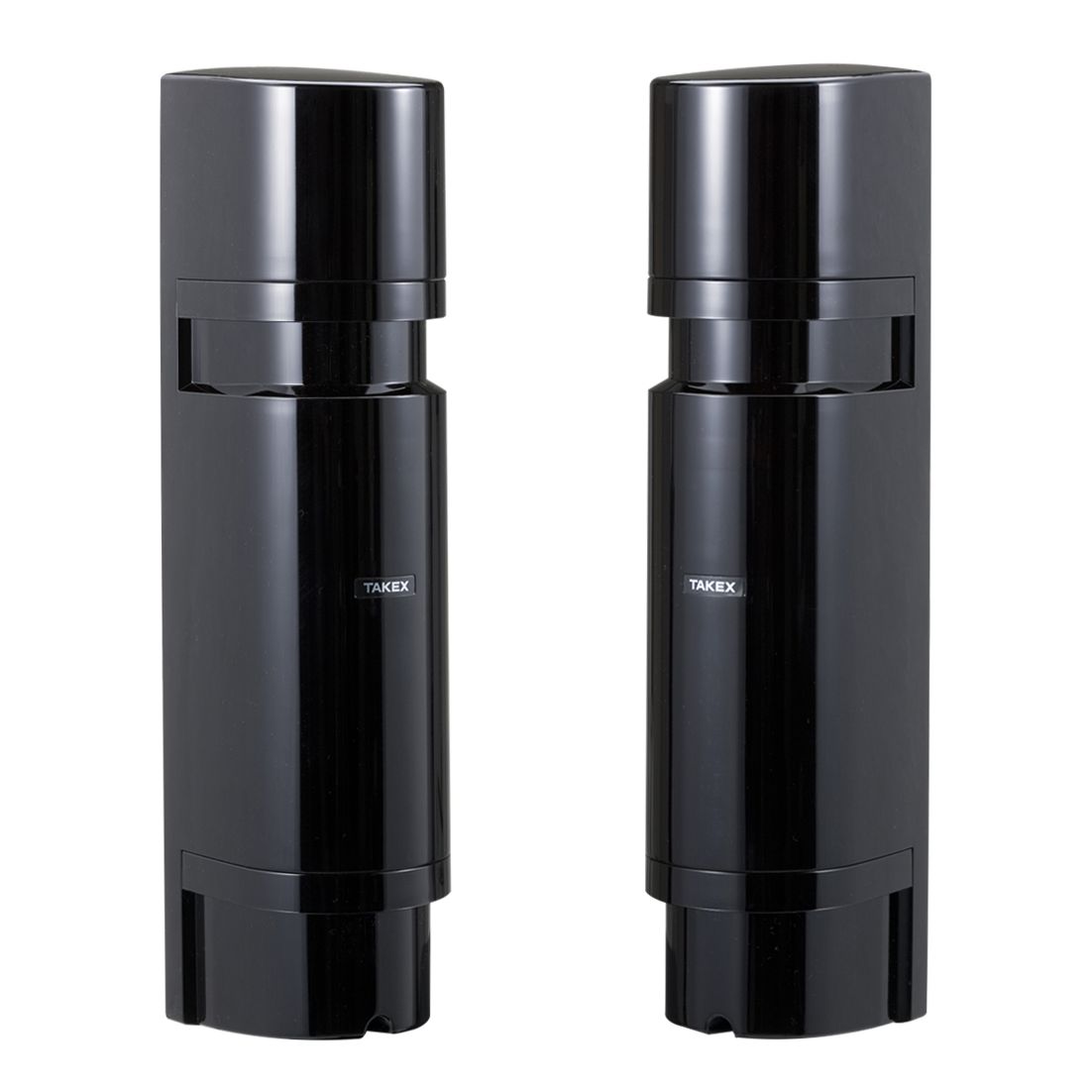

Takex PB-IN-100HF High Performance Intelligent Synchro-Quad (100m Outdoor / 200 Indoor)
The TAKEX PB-IN-100HF is a high-performance 100 metre outdoor quad infrared photoelectric beam sensor designed for reliable perimeter intrusion detection across commercial, industrial and high-security applications.
Using four synchronised high-power infrared beams, the PB-IN-100HF requires simultaneous interruption of the beam pattern before generating an alarm, helping provide greater stability and resistance to nuisance alarms caused by birds, falling leaves and other small objects. Its double-modulated infrared technology also provides excellent immunity to direct sunlight, vehicle headlights and other external light sources.
The system provides a detection range of up to 100 metres outdoors and 200 metres indoors. Four selectable beam-frequency channels allow multiple beam sets to be installed in stacked or opposing configurations while helping prevent interference or crosstalk between adjacent units.
Built-in Dynamic Automatic Gain Control (AGC) and environmental monitoring help compensate for changing atmospheric conditions such as fog, rain and dust. The receiver also incorporates an audible alignment tone, LED indicators and a monitor jack to assist installers with accurate transmitter-to-receiver alignment.
Key Features:
- Intelligent quad infrared photoelectric beam
- 100m outdoor detection range
- Up to 200m indoor detection range
- Four synchronised high-power infrared beams
- Alarm requires simultaneous interruption of all four beams
- 4 selectable beam-frequency channels
- Double-modulated infrared transmission
- High immunity to sunlight and vehicle headlights
- Dynamic Automatic Gain Control (AGC)
- Environmental / anti-fog monitoring circuit
- Adjustable response time from approximately 50–700ms
- Audible beam-alignment tone
- Alignment LED and monitor jack for accurate commissioning
- Beam-power adjustment
- Alarm memory function
- Frost-resistant cover
- Adjustable beam heads: approximately ±90° horizontal / ±10° vertical
- 12–30VDC non-polarised power supply
- Approximately 70mA current consumption
- Form C relay alarm output
- Tamper protection
- Operating temperature approximately -35°C to +66°C
- Suitable for wall or pole mounting
- Ideal for boundary fences, compounds, yards, warehouses and long perimeter runs
