Takex "Snap-in" Wide Angle PIR with 2k2 & 6k8 pre-fitted (12m)

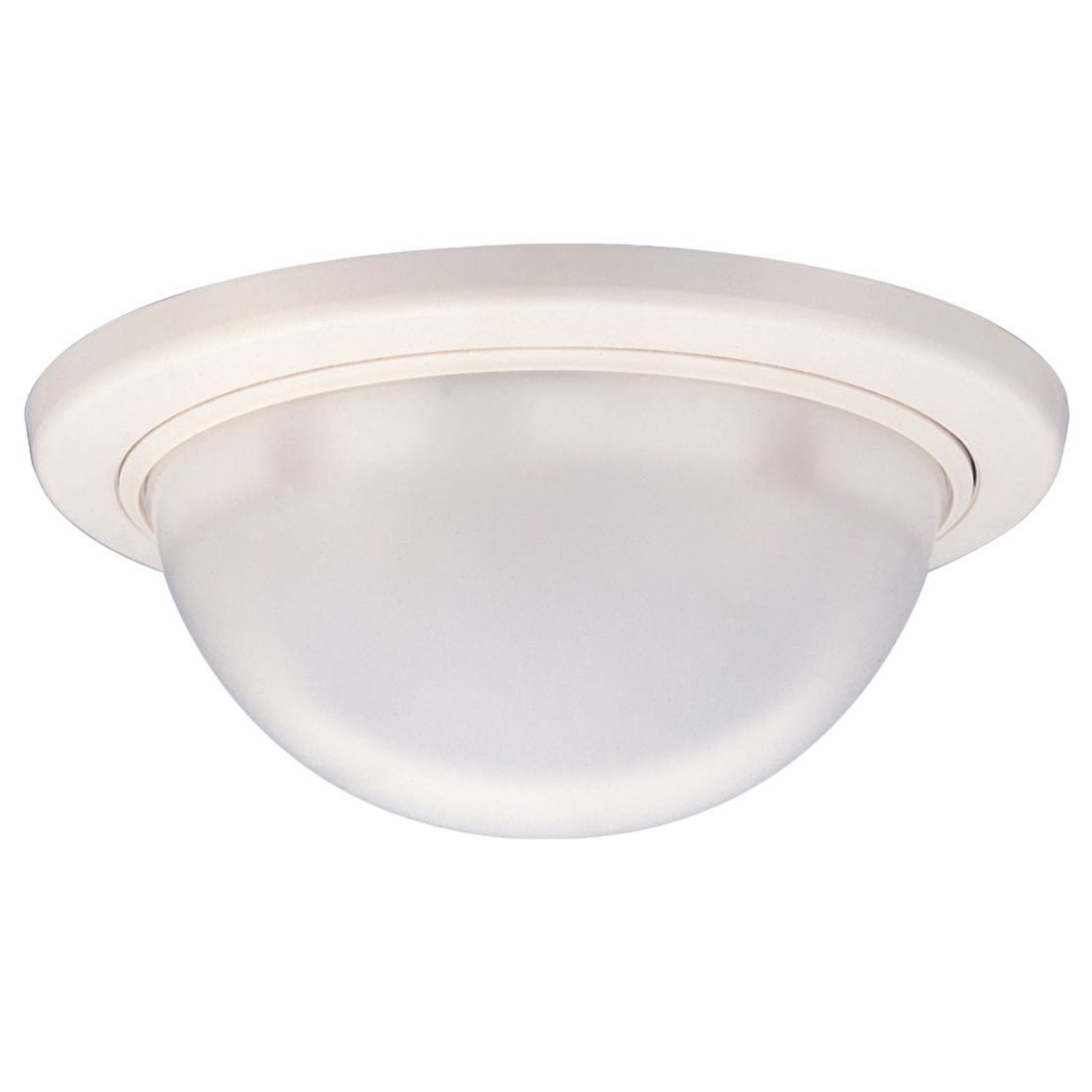

The TAKEX PA-6812R is a compact ceiling-mounted passive infrared motion detector providing 12 metre wide-angle coverage for commercial and professional intruder alarm applications. It uses a dual-element mirror optic and can be mounted at heights of up to 4.9 metres, making it well suited to classrooms, offices, corridors and other open indoor areas.
The PA-6812R incorporates TAKEX’s convenient snap-in sensor head and detachable base design, simplifying installation and maintenance. This version is supplied with 2.2kΩ and 6.8kΩ resistors pre-fitted in the base, originally configured for Inner Range Concept 4000 alarm systems, works with Inception & Integriti.
Key Features:
- 12m wide-angle PIR detection
- Dual-element mirror optic
- Ceiling mounting up to 4.9m
- 2.2kΩ and 6.8kΩ resistors pre-fitted
- Remote LED control
- Adjustable sensitivity and pulse count
- Snap-in detector head and removable base
- 10–30V DC operation
- Compact 120mm diameter housing
- Suitable for commercial intruder alarm installations
